    Steel Electric Wire Tubular Strander 500 630 Bobbins 22KW

    Ask Lasest Price
    Brand Name : BH
    Model Number : JGG
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 115 days
    • Product Details
    • Company Profile

    Steel Electric Wire Tubular Strander 500 630 Bobbins 22KW

    Steel Electric Wire Tubular Strander 500 630 Bobbins 22KW


    1. Application

    The machine is used for stranding copper aluminum stranded wire, steel cored aluminum stranded wire and steel stranded wire.Wire break alarm signal is transmitted by pulse, which is accurate and efficient.And cabinet type touch screen operation desk is adopted, which is convenient for operation and beautiful in form.

    2. Product Series

    2.1 Based on different bobbin size in stranding cage: PN200, PN315, PN400, PN500, PN630, PN710,PND400, PND500, PND630, PND710
    2.2 Based on different cores of stranding cable: 1+6(7B), 1+12 (13B), 1+18(19B)
    2.3 Based on different supporting type: bearing type, support roller type.
    2.4 Based on different type back-twist: gear type back-twist, back-twist ring type
    2.5 Based on different pay-off tension control: magnetic powder brake type tension control, mechanical automatic feedback type tension control, fixed tension mechanical friction type tension control.
    2.6 Based on different take-up: Portal type, shaft-less type and shaft type in structure; φ1250, φ1600,φ2000 in bobbin size.
    2.7 Based on different capstan dia.: φ315, φ800, φ1000, φ1250, φ1500
    2.8 Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation, electromagnetic speed regulation


    3. Technical parameters

    Model (Tubular Stranding Machine)JGG-400JGG-500JGG-630
    Diameter of single wireCopperφ1.2-2.6 mmφ1.4-4 mmφ2-7 mm
    Aluminumφ1.8-2.6 mmφ1.8-4 mmφ2-7 mm
    Maximum stranded conductor ODφ7 mmφ10 mmφ12 mm
    Stranding Pitch6 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    12 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    18 Bobbin Stranding Cage44-334 mm44-338 mm82-620 mm
    Rotating Speed6 Bobbin Stranding Cage600 r/min600 r/min400 r/min
    12 Bobbin Stranding Cage600 r/min500 r/min300 r/min
    18 Bobbin Stranding Cage450 r/min400 r/min230 r/min
    CapstanCapstan Wheel Diameterφ600 mmφ800 mmφ1000 mm
    Maximum Haul-off Force3T5T5T
    Motor Power22 KW30 KW37 KW
    Bobbin Size400 mm500 mm630 mm
    Center Payoff Bobbin400 mm500 mm630 mm
    Take-up Bobbin1250 mm1600 mm2000 mm

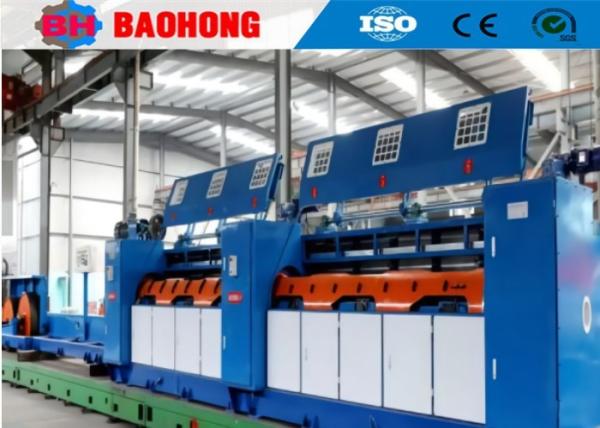

    4. Photos
    Steel Electric Wire Tubular Strander 500 630 Bobbins 22KW
    Steel Electric Wire Tubular Strander 500 630 Bobbins 22KW


    5. Packing photos


    6. Our factory and introduction

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
