    ACSR / AAC / ABC Conductor Skip Stranding Machine Bow Type For Control Cables

    Ask Lasest Price
    Brand Name : BH
    Model Number : JBG
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : L/C, D/P, T/T, D/A
    Supply Ability : 20 sets per month
    Delivery Time : 125 days
    • Product Details
    • Company Profile

    ACSR / AAC / ABC Conductor Skip Stranding Machine Bow Type For Control Cables

    ACSR / AAC / ABC Conductor Skip Stranding Machine Bow Type For Control Cables

    1. Application
    Cable Bow skipper machine is used for stranding copper, aluminum wire and steel wires.
    2. Main Components

    2.1 Φ560 fixed type Pay-off 1 set

    2.2 6B Skip strander 1 set

    2.3 Assembly die holder 1 set

    2.4 Pre-forming device 1 set

    2.5 Meter counter 1 set

    2.6 36-step gearbox 1 set

    2.7 Φ1200 dual capstan device 1 set

    2.8 1600 Traversing stand 1 set

    2.9 1600 Column type take-up 1 set

    2.10 Electrical control system 1 set

    2.11 Safety shield 1 set

    3. Technical datas
    Model (Skip Stranding Machine)JGB-630(500)JGB-700JGB-800
    Diameter of single wireCopperφ1.8-5 mmφ2-5 mmφ2.5-5 mm
    Aluminumφ2.0-5 mmφ2.5-5 mmφ3.0-5 mm
    Galvanized steel wireφ1.0-4.0 mmφ1.2-4.0 mmφ1.5-4.0 mm
    Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mm
    Stranding Pitch6 Bobbin Stranding Cage31.1-235.0mm31.1-235.0mm31.1-235.0mm
    Max. Rotating Speed6 Bobbin Stranding Cage1000 r/min800 r/min700 r/min
    CapstanCapstan Wheel Diameter1200 mm1400 mm1400 mm
    Maximum Haul-off Force10 T10 T12 T
    Motor Power37 KW45 KW55 KW
    Bobbin Size630*475*127710*530*127

    800*600*127

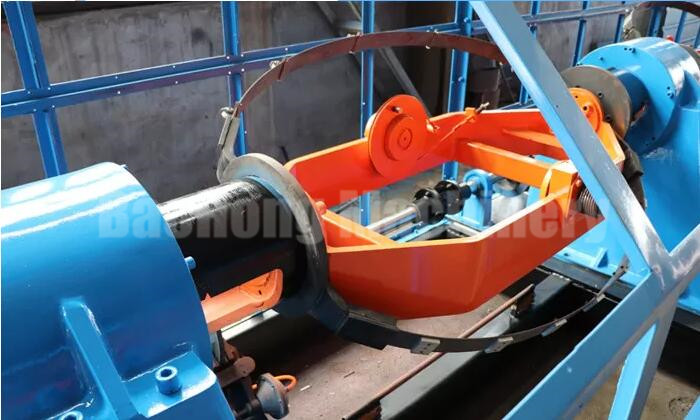

    4. Photos



    5. Packing photo

    ACSR / AAC / ABC Conductor Skip Stranding Machine Bow Type For Control Cables


    6. Our factory and introduction

    ACSR / AAC / ABC Conductor Skip Stranding Machine Bow Type For Control Cables

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
