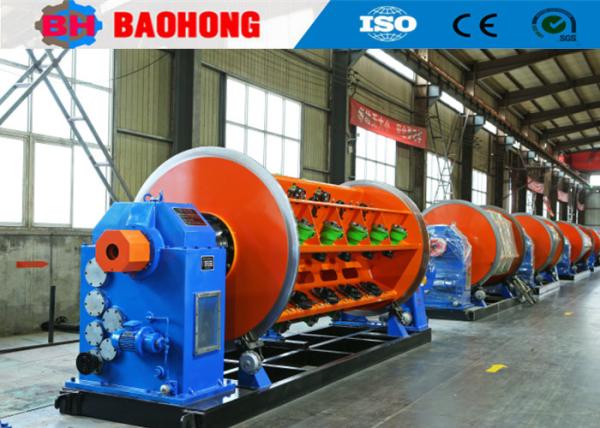

    Aluminum Rigid Frame Stranding Machine 55 Mm For Copper Wire

    Ask Lasest Price
    Brand Name : BH
    Model Number : JLK 630/12+18+24
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 115 days
    • Product Details
    • Company Profile

    Aluminum Rigid Frame Stranding Machine 55 Mm For Copper Wire

    Good quality Rigid Frame Stranding Machine For Aluminum and copper wire


    1. Application
    This machine mainly used for aluminum,copper and ACSR shaped or round conductor stranding,compacting, drawing and single-core preforming processing.


    2. Component
    Central pay off, stranding cage, assemble holder,compact holder, pulling device, take-up and traverse device, electrical control system, and transmission system.


    3. Technical Parameters

    Model (Rigid Stranding Machine)JLK-500JLK-630JLK-710/720
    Diameter of single wireCopperφ1.5-5 mmφ1.5-5 mm φ1.5-5 mm
    Aluminumφ1.5-5 mmφ1.5-5 mmφ1.5-5 mm
    Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mm
    Stranding Pitch6 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm
    12 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm
    18 Bobbin Stranding Cage44-793 mm63-1056 mm57-1012 mm
    24 Bobbin Stranding Cage51-924 mm71-1246 mm66-1190 mm
    30 Bobbin Stranding Cage57-1028 mm87-1553 mm79-1403 mm
    Rotating Speed6 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min
    12 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min
    18 Bobbin Stranding Cage208.5 r/min155 r/min142.6 r/min
    24 Bobbin Stranding Cage179 r/min130.1 r/min122.3 r/min
    30 Bobbin Stranding Cage161.8 r/min115.9 r/min102.7 r/min
    CapstanCapstan Wheel Diameter2000 mm2000 mm2000 mm
    Maximum Haul-off Force30 T30 T40 T
    Pre-spiral DevicePitch500-2500mm500-2500mm500-2500mm
    Motor Power90-180 KW110-180 KW130-180 KW
    Bobbin Size500*375*127630*475*127710*530*127
    Center Payoff Bobbin1600*800*801600*800*801600*800*80
    Take-up Bobbin2500*1500*1252500*1500*1253150*1900*160
    Maximum Haul-off Linear Speed69 m/min69 m/min62 m/min
    Central Height1000 mm1100 mm1100 mm

    4. Attached technical data of equipment
    4.1.Layout drawing 1set
    4.2.Foundation drawing 1set
    4.3.Pneumatic pipeline drawing 1set
    4.4.Transmission mechanism schematic drawing 1set
    4.5.Transmission system drawing 1set
    4.6.Lubrication drawing 1set
    4.7.Electrical piping drawing 1set
    4.8.Electrical wiring list 1set
    4.9.Electrical pipeline drawing 1set
    4.10.Operation and maintenance manual 1set
    4.11.Operation manual of frequency converter 1set


    5. Photo



    6. Packing photo


    7. Our factory and company introduction

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
