Back twist Planetary Stranding Machine Electric Wire Cable Making
Machine
1. Application
This equipment is mainly used for steel-cored aluminum strand wire,
bare copper, bare aluminum wire strands, control cables, signal
cables, computer cables, insulated wire and cable.
2. Components
Central pay-off device,mainframes of 6-
bobbin,12-bobbin,18-bobbin,24-bobbin and 30-bobbin,die
holder,taping device,armouring device,traction,take-up and traverse device,transmission system and
electric control system.
3. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 |
| Diameter of single wire | Copper | φ1-1.6 mm | φ1-4 mm | φ1.2-5 mm | φ1.5-5 mm |
| Aluminum | φ1.2-2 mm | φ1.2-4 mm | φ1.4-5 mm | φ2.0-5 mm |
| Maximum stranded conductor OD | φ14 mm | φ28 mm | φ35 mm | φ45 mm |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 |
| Rotating Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW |
| Bobbin Size | 315 mm | 400 mm | 500 mm | 630 mm |
| Center Payoff Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1100 mm |

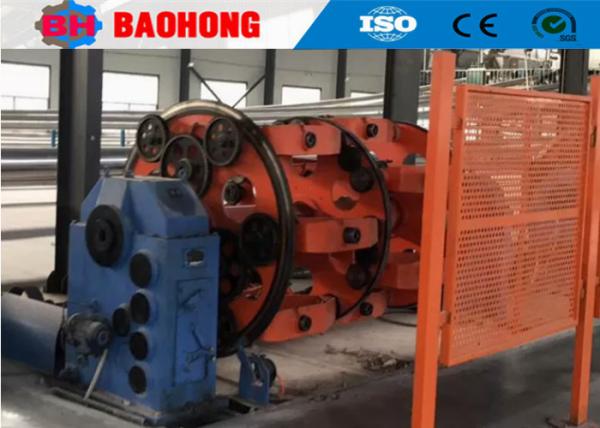

4. Photo
