    OD 7mm Electrical Wire Tubular Stranding Machine Pneumatical Clamping

    Ask Lasest Price
    Brand Name : BH
    Model Number : JGG 400 500 630/1+6
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    OD 7mm Electrical Wire Tubular Stranding Machine Pneumatical Clamping

    OD 7mm Electrical Wire Tubular Stranding Machine Pneumatical Clamping


    1. Application

    It is used for stranding the steel wires , aluminum wires and copper wires , as well as stranding of control cables.


    2. Features

    2.1 The machine reel is pneumatically clamping or manually clamping, which is easy to operate, safe and reliable.
    2.2 The machine is equipped with safety links such as broken automatic parking device and emergency parking device,which is safe and reliable.
    2.3 The machine adopts the imported programmable controller to uniformly command and coordinate the working state of the electrical parts of the whole machine. The electronic control system is advanced in technology, convenient in operation and reliable in operation.


    3. Technical parameters

    Model (Tubular Stranding Machine)


    JGG-400JGG-500JGG-630
    Diameter of single wire

    Copper


    φ1.2-2.6 mmφ1.4-4 mmφ2-7 mm

    Aluminum


    φ1.8-2.6 mmφ1.8-4 mmφ2-7 mm

    Maximum stranded conductor OD


    φ7 mmφ10 mmφ12 mm
    Stranding Pitch6 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    12 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    18 Bobbin Stranding Cage44-334 mm44-338 mm82-620 mm
    Rotating Speed6 Bobbin Stranding Cage600 r/min600 r/min400 r/min
    12 Bobbin Stranding Cage600 r/min500 r/min300 r/min
    18 Bobbin Stranding Cage450 r/min400 r/min230 r/min
    CapstanCapstan Wheel Diameterφ600 mmφ800 mmφ1000 mm

    Maximum Haul-off Force


    3T5T5T

    Motor Power


    22 KW30 KW37 KW

    Bobbin Size


    400 mm500 mm630 mm

    Center Payoff Bobbin


    400 mm500 mm630 mm

    Take-up Bobbin


    1250 mm1600 mm2000 mm

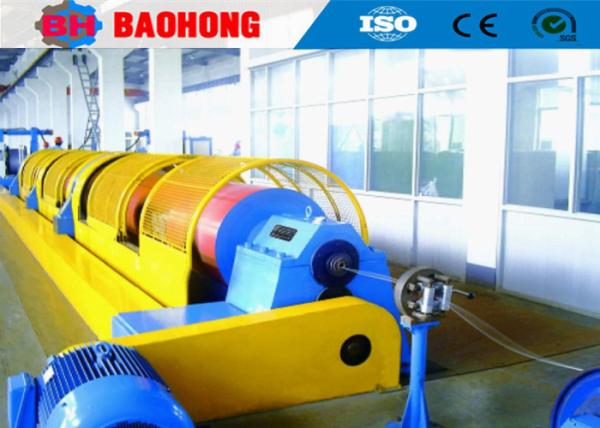

    4. Photo

    OD 7mm Electrical Wire Tubular Stranding Machine Pneumatical Clamping


    OD 7mm Electrical Wire Tubular Stranding Machine Pneumatical Clamping


    5. Packing photo


    6. Our factory and introduction

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in Hejian City, Hebei Province Economic Development Zone, is North China's largest stranding machine, laying-up machine professional manufacturer.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
