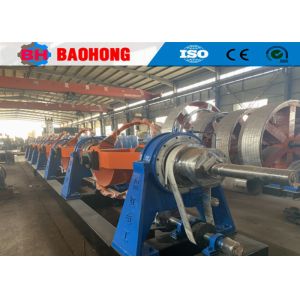

Combined Skip Type Stranding Machine For Twisting Cable Conductor

Hejian BaoHong Electrical Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Combined Skip Type Stranding Machine For Twisting Cable Conductor from wholesalers

    Buy cheap Combined Skip Type Stranding Machine For Twisting Cable Conductor from wholesalers
    • Buy cheap Combined Skip Type Stranding Machine For Twisting Cable Conductor from wholesalers

    Combined Skip Type Stranding Machine For Twisting Cable Conductor

    Ask Lasest Price
    Brand Name : BH
    Model Number : JGB
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 95 days
    • Product Details
    • Company Profile

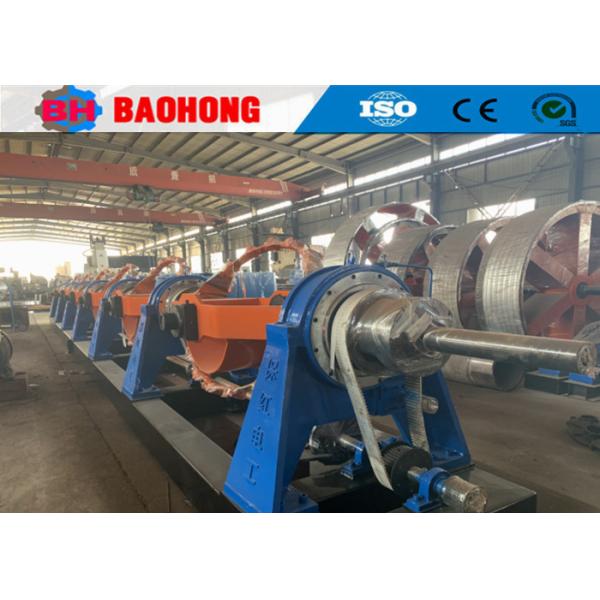

    Combined Skip Type Stranding Machine For Twisting Cable Conductor

    Combined Skip Type Stranding Machine For Twisting Cable Conductor


    1. Application

    High speed tubular type stranding machine is used for stranding steel wire, aluminum wires and copper wire as well as cabling the control cables.


    2. Feature

    2.1. The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

    2.2. Bobbin is clamped by disc springs and released by pneumatic device..

    2.3. Wire-break and emergent stops provided for all the line

    2.4 .The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.


    3. Technical datas

    Model (Skip Stranding Machine)JGB-630(500)JGB-700JGB-800
    Diameter of single wireCopperφ1.8-5 mmφ2-5 mmφ2.5-5 mm
    Aluminumφ2.0-5 mmφ2.5-5 mmφ3.0-5 mm
    Galvanized steel wireφ1.0-4.0 mmφ1.2-4.0 mmφ1.5-4.0 mm
    Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mm
    Stranding Pitch6 Bobbin Stranding Cage31.1-235.0mm31.1-235.0mm31.1-235.0mm
    Max. Rotating Speed6 Bobbin Stranding Cage1000 r/min800 r/min700 r/min
    CapstanCapstan Wheel Diameter1200 mm1400 mm1400 mm
    Maximum Haul-off Force10 T10 T12 T
    Motor Power37 KW45 KW55 KW
    Bobbin Size630*475*127710*530*127800*600*127

    4. Brand of main components

    4.1 Bearings useSchneider

    4.2 Motors use China brand

    4.3 AC inverter use brand

    4.4 PLC uses brand

    4.5 Touch screen uses brand

    4.6 Main low voltage electrical parts use Schneider products


    5. Photo

    Combined Skip Type Stranding Machine For Twisting Cable Conductor


    Combined Skip Type Stranding Machine For Twisting Cable Conductor


    6. Packing photo


    7. Our factory and introduction

    Combined Skip Type Stranding Machine For Twisting Cable Conductor

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
