    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    Ask Lasest Price
    Brand Name : BH
    Model Number : JGB
    Certification : ISO,CE
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 25 sets per month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    1. Application
    The skip stranding machine is used for stranding 1+6 structure conductor. The conductor from 15 sqmm to 100 sqmm aluminum and copper 1+6 conductor.

    2. Structure
    Bow type structure, totally 7 support boxes support 6 pairs of stranding bows on each pair end. The bow material is carbon fiber, which is durable. The machine is equipped with wire-break test device for each payoff unit in each bow. When wire is broken, and payoff bobbin will decrease the rotating speed, then the detector will get the data, then the machine will stop automatically. This will detect the 99% wire broken.

    3. Technical parameters

    Model (Skip Stranding Machine)JGB-630(500)JGB-700JGB-800
    Diameter of single wireCopperφ1.8-5 mmφ2-5 mmφ2.5-5 mm
    Aluminumφ2.0-5 mmφ2.5-5 mmφ3.0-5 mm
    Galvanized steel wireφ1.0-4.0 mmφ1.2-4.0 mmφ1.5-4.0 mm
    Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mm
    Stranding Pitch6 Bobbin Stranding Cage31.1-235.0mm31.1-235.0mm31.1-235.0mm
    Max. Rotating Speed6 Bobbin Stranding Cage1000 r/min800 r/min700 r/min
    CapstanCapstan Wheel Diameter1200 mm1400 mm1400 mm
    Maximum Haul-off Force10 T10 T12 T
    Motor Power37 KW45 KW55 KW
    Bobbin Size630*475*127710*530*127800*600*127
    Center Payoff Bobbin630*475*127710*530*127800*600*127
    Take-up Bobbin1250*950*801600*1180*801600*1180*80
    Maximum Haul-off Linear Speed235 m/min200 m/min170 m/min
    Central Height1000 mm1000 mm1000 mm

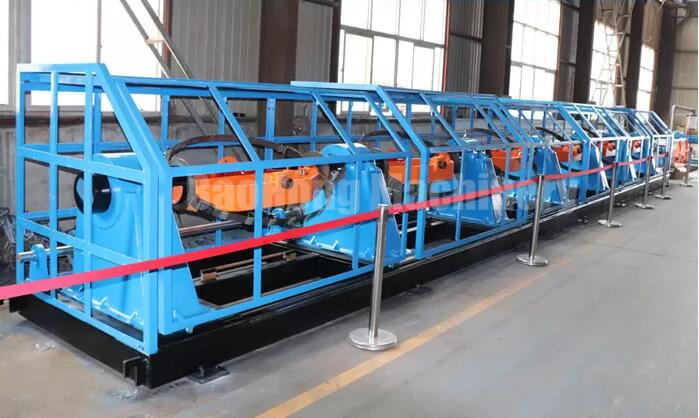

    4. Photo
    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    5. Packing photo


    6. Our factory and introduction
    630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor

    Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
