1250/1+3 Skip Cable Laying Up Machine 1250 Mm Drum 15KW Traction
Motor
1. Usage
The machine is used for cabling control cable, mining cable, rubber
sheathed cable and ABC cable.
2. Processing characteristics
After welded process, the whole structure is annealed in the
annealing furnace, which will remove the internal stresses.
Then the whole structure will be machined on the big horizontal
lathe. This horizontal lathe is big enough to machine every part in
one step, without changing one end to the other. This process will
keep the concentricity of the whole structure, prolong the service
life of bearings on the both ends.
The deep hole drilling and boring machine can turn the installed
holes for the clamping devices. The holes for one pair of clamping
devices are turned in one step, which keeps the both holes in the
same concentricity. The concentricity will reduce the wire-break
rate and prolong the bearing for the clamping device.
This double column vertical lathe is used to turn the big disc for
cradle type laying-up machine and the capstan of the stranding
machine. This machine can turn and burnish the grooves to protect
the cable and keep the same hual-off force.
Large planer type milling machine, which is used to mill the main
chassis of the main stranding cage and take-up & pay-off chassis.
The large planer type milling machine can ensure that each flat
surfaces are machined in one time to keep the homogeneous height
distribution of the surface machined by the milling machine. All of
these will enable the whole machine runs smoothly.
Dynamic balancing machine is the key producing equipment to produce
the fast running wire and cable equipment, especially the rigid
frame stranding cage and tubular stranding cage. The machining
process of the stranding cage will lead to different eccentric
force, which will be detected by the dynamic balancing machine.
After corrected the stranding cage will easily meet the high speed
rotation requirement and increase the service life.
3. Main specification
| CGB Skip Laying up Machine unit:mm |
| Model | Inlet wire max diameter | Outlet wire diameter | Laying pitch | Wrapping | Haul-off | Take-up | Center Height |
| 1000/1+3 | 16 | 40-48 | 150-2000 | 600 | 2000 | 1250/2500 | 1000 |
| 1000/1+4 |
| 1000/1+5 |
| 1000/1+6 |
| 1250/1+3 | 20 | 48-60 | 150-2000 | 2150 | 1250/2500 |
| 1250/1+4 |
| 1250/1+5 |
| 1250/1+6 |
| 1600/1+3 | 25 | 60-75 | 500-4000 | 2500 | 1600/3150 |
| 1600/1+4 |
| 1600/1+5 |
| 1600/1+6 |

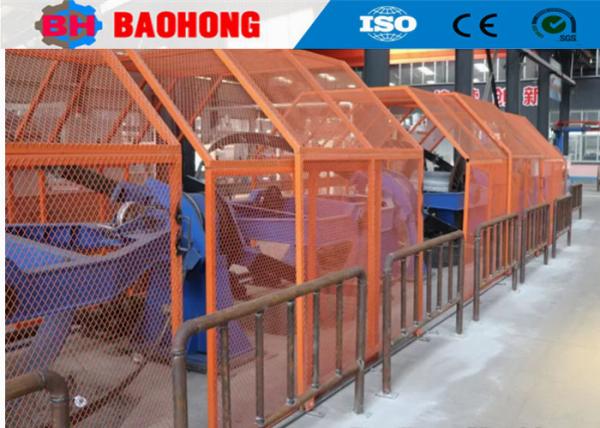

4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in
2006. Our company is located in the Economic Development Zone of
Hejian City, Hebei Province, has been the largest professional
manufacturer for wire stranding machine and laying-up machine in
North China.
Since 2006, relying on the care and support of our customers,
Baohong Machinery has been devoted to the research and development
of wire stranding machine and laying-up machine and has made great
improvement. Now we have become the only one factory who can
develop the production of the JLK rigid stranding machine series to
be an assembly line processing in China, and we also have
independently developed the JGB Bow skip stranding lines, the CGB
Bow skip type cabling lines and the CLY High speed Cradle type
Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area
of 10000 square meters, production workshop 8000 square meters. Our
company has 60 employees, including 10 R & D staffs. Annual output
value is over 10 million dollars at present,and has developed into
one of the most important Stranding Machine Manufacturer in China.
